Foldable Truck Ramps: Heavy-Duty Strength & Portable Design
Share

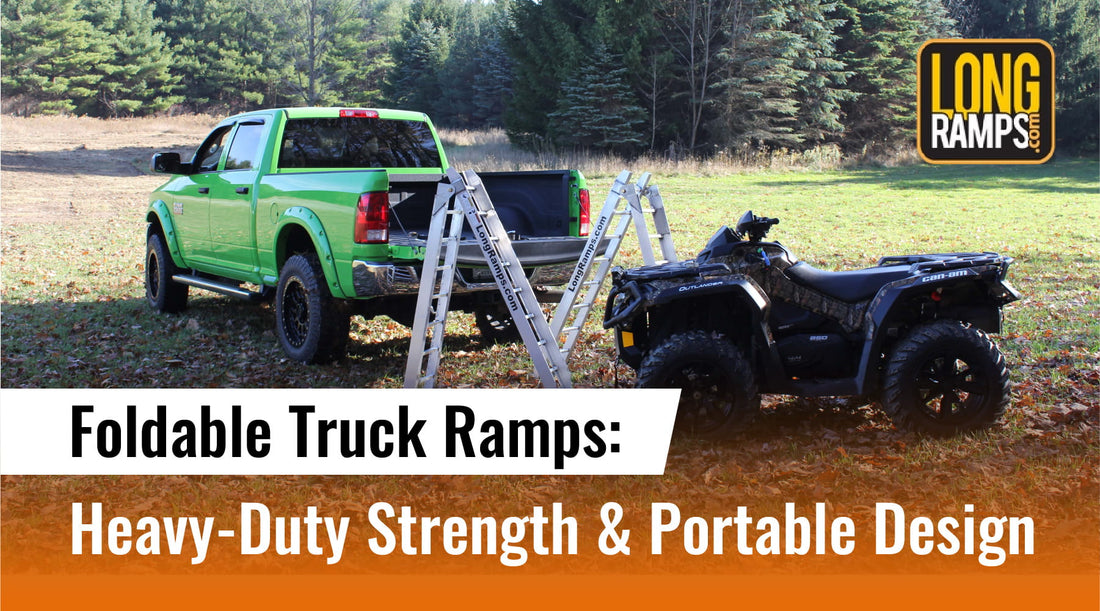

Are there foldable ramps suitable for heavy ATVs? Yes, there are foldable truck ramps specifically engineered to support heavy ATVs and Side-by-Sides by utilizing CNC welded hinges and aviation-grade 6061-T6 aluminum. Unlike standard retail models that rely on weak bolted joints, heavy-duty foldable loading ramps can maintain a 2,500lb rating while offering the portability needed for modern pickup trucks. By focusing on joint integrity and an increased hinge pin diameter, these ramps provide a secure loading platform that folds down to a compact storage footprint without compromising safety.
The Problem Space: The "Hinge Failure" Risk in Folding Designs
For years, the market for folding truck ramps has been divided into two categories: heavy, cumbersome fixed ramps or convenient but dangerously flimsy folding ramps. The primary engineering challenge for any foldable ramp for truck use is the pivot point. Most mass-produced aluminum folding ramp models utilize a simple through-bolt design at the hinge, which creates a significant structural bottleneck.
When a 900-lb quad or a 2,000-lb UTV ascends the ramp, the force applied to the hinge is not just vertical weight; it is dynamic torque. This is governed by the formula: Torque = Force x Distance. In a bolted hinge, that force is concentrated entirely on a thin steel bolt, which can shear or "ovalize" the aluminum holes over time.
This mechanical degradation leads to a loss of joint integrity, causing the ramp to buckle or "smile" at the most critical moment of loading and unloading. Furthermore, many steel loading ramps that fold are excessively heavy, making them a chore to deploy and a hazard in the truck bed if they shift during transit. High-performance foldable ramps for trucks must solve the paradox of being light enough to carry but strong enough to remain rigid under maximum weight capacities.
The LongRamps Solution: CNC Welded Hinges and Joint Integrity
At LongRamps, we rejected the idea that portability should cost you strength. Our foldable loading ramps for trucks are built using CNC Welded Hinges, an engineering choice that elevates our gear above the competition. Instead of a bolt passed through a hole, our hinges are integrated into the ramp's aviation-grade 6061-T6 aluminum structure using precision computer-controlled welding.
This weld-centric approach ensures that the hinge becomes a structural extension of the ramp rails, rather than a separate, moving weakness. We have also increased the hinge pin diameter to distribute the load across a larger surface area, significantly reducing the pressure on the pivot point. This allows us to offer aluminum foldable ramps that maintain the same 2,500 lb rating as our fixed models.
By utilizing the same metallurgy found in our Aluminum ATV Ramps: The 6061-T6 Grade Durability Test, these foldable trailer ramps resist the "bouncing" effect seen in lower-grade alloys. This structural rigidity is essential for maintaining a 15° Gradual Ascension during the loading process. Our Light Duty Pickup Truck Bed Loading Ramps provide this high-end engineering for users who demand professional-grade performance in a portable package.
Step-by-Step Practical Guide: Storage and Maintenance
Maximizing the life and safety of your folding loading ramps requires a combination of smart storage and routine technical inspections.
Step 1: Optimizing Storage Footprint
The beauty of a foldable loading ramp is its ability to tuck away when the truck bed is occupied. When fitting two quads in one bed, slide the folded ramps vertically between the machine's tires and the bed walls. This utilizes "dead space" and ensures the ramps are secured by the pressure of the machines or secondary straps.
Step 2: Hinge Pin Inspection
Before every use, inspect the hinge area for "play" or lateral movement. Even with CNC Welded Hinges, the hinge pin is a wear item. Use the formula Stress = Force / Area to remember that a thicker pin equals lower stress; if the pin shows signs of bending or the weld shows hairline fractures, the ramp has likely reached its yield point.
Step 3: Loading Alignment
When deploying foldable loading ramps, ensure the hinge is fully locked in the open position before the tires make contact. For specialized vehicles, like those mentioned in our Golf Cart Ramps: A Guide to Loading Without Bottoming Out, alignment is key to ensuring the weight is distributed evenly across both rails, protecting the joint integrity.
Buyer’s Comparison: LongRamps vs. Standard Retail Folding Ramps
Choosing between a high-end folding system and a budget retail model comes down to the quality of the hardware. For heavy side by side transport, a bolted hinge is a safety liability.
| Feature | LongRamps Heavy-Duty Folding | Standard Retail Folding Ramps |
|---|---|---|
| Hinge Construction | CNC Welded (Integrated) | Bolted (Through-Hole) |
| Weight Capacity | 2,500 lbs (Set) | 1,000 lbs - 1,200 lbs (Set) |
| Hinge Material | 6061-T6 Aluminum | Low-grade Steel or 6063 Aluminum |
| Joint Integrity | Extreme (No Lateral Play) | Moderate to Low (Prone to Wobble) |
| Hinge Pin Diameter | Heavy-Duty Industrial Grade | Standard Thin-Gauge Bolt |
Conclusion
The myth that foldable truck ramps are inherently weaker than fixed designs is officially debunked by precision American engineering. By utilizing CNC Welded Hinges and a beefed-up hinge pin diameter, LongRamps has created a system that offers the ultimate storage footprint without sacrificing the 2,500 lb rating needed for modern machines.
Whether you are loading atvs motorcycles or heavy UTVs, the joint integrity of your ramp is your primary safety net. Investing in a high-quality aluminum folding ramp ensures that your equipment remains as portable as it is powerful. Trust the science of UTV Ramps: Comparing Straight vs. Arched and the durability of heat-treated alloys to get you to the trail and back safely every time.
FAQ: Portability and Folding Safety Mastery
1. Are folding ramps safe for heavy ATVs and Side-by-Sides?
Yes, folding ramps are safe for heavy ATVs and Side-by-Sides, provided they are engineered with joint integrity in mind. Look for ramps like those from LongRamps that feature a 2,500 lb rating and CNC Welded Hinges. Many cheap, bolted folding ramps are only rated for 1,000 lbs and can fail under the torque and curb weight of a modern Side-by-Side, so always verify the technical specs before purchase.
2. Steel vs. Aluminum: Which is better for foldable truck ramps?
Aluminum is generally better for foldable truck ramps because of its superior strength-to-weight ratio. While steel loading ramps are strong, they are incredibly heavy and prone to rust at the folding joints, which can seize the hinge over time. 6061-T6 aviation-grade aluminum provides the heavy duty strength needed for loading while remaining light enough for easy transport and storage in pickup trucks.
3. How do I store my folding ramps in the truck bed?
The most efficient way to store folding loading ramps is to fold them and slide them flat onto the bed floor or stand them vertically against the bed rails. Because of their reduced storage footprint, they can often fit underneath your ATV once it is loaded. Always secure your aluminum foldable ramps with a ratchet strap or bungee to prevent them from bouncing or sliding while you are driving.
4. What is the difference between a bi-fold and a tri-fold ramp?
A bi-fold ramp has one hinge point and folds in half, whereas a tri-fold ramp has two hinge points and folds into thirds (often laterally). For heavy duty loading, bi-fold designs are generally superior because they have fewer points of failure and maintain better joint integrity. Tri-fold ramps are often wider but thinner, making them better for light lawnmowers but less suitable for the high weight capacities required by ATVs.
5. How do I prevent my folding ramps from slipping during loading?
To prevent foldable loading ramps from slipping, you must use the included safety straps to anchor the ramps to a secure point on the truck frame or hitch. This is especially important for folding designs, as the torque from the tires can cause the hinge to "kick" if the ramp is not under tension. Ensure the rubber-coated fingers are seated fully on the tailgate and the straps are tightened to eliminate all movement before you begin loading and unloading.
