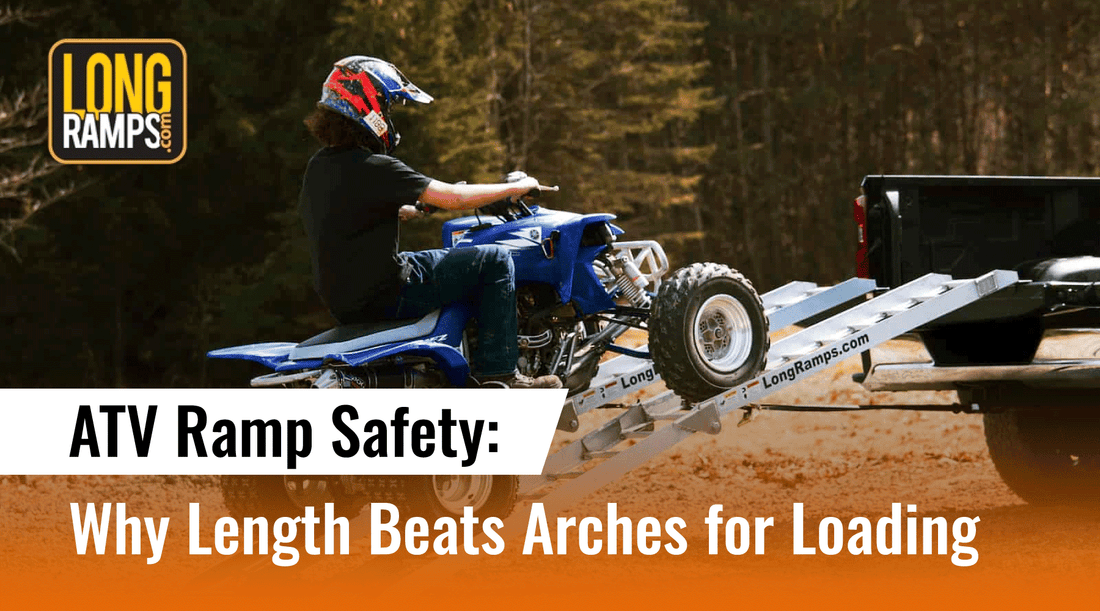

To install an ATV ramp safely at home, you must first park your vehicle on flat, level ground and engage the parking brake. Position your LongRamps so the heavy-duty attachment lips rest fully on the tailgate, then secure high-tension safety straps (purchased separately) to a structural point on the truck frame—such as the hitch safety chain loops—to prevent kick-out. Ensure the ramps for quad loading are parallel and spaced according to your vehicle's wheel track width before beginning a slow, steady 15° Gradual Ascension in low gear.
The Physics of Danger: Why Standard Loading Fails
Loading a 900-pound quad into a high-clearance pickup truck is one of the most statistically dangerous moments of powersports ownership. Most riders treat the atv ramp as a simple bridge, but in engineering terms, it is a dynamic inclined plane where gravity and friction are in a constant tug-of-war with torque.
When using "standard" 6-foot or 7-foot ramps for 4 wheelers, you are forcing the machine to overcome a massive gravitational vector over a very short horizontal distance. This creates an aggressive pitch that most factory suspensions aren't designed to handle gracefully during a climb.
The primary point of failure in most loading ramps for atv use is the "Incline Peak," where the ramp meets the tailgate. As the front wheels of the ATV reach this transition point, the machine’s center of gravity shifts dramatically toward the rear axle.
If the angle is too steep—which is almost always the case with short retail ramps—the torque applied to the rear wheels can cause the front end to lift. This results in a catastrophic backward flip, often pinning the rider between the machine and the ground before they can react.
Beyond the flip risk, "arched" ramps, often marketed as a solution for ground clearance, are frequently a geometric compromise that creates new hazards. While they help prevent the undercarriage from bottoming out on the tailgate, they do not solve the fundamental issue of the loading angle.
An arched ramp still requires a high-torque burst to reach the apex, which can cause tire spin on wet aluminum. This leads to a loss of momentum and a dangerous slide-back, often resulting in the ATV coming off the side of the ramp for atv entirely.
Short ramps also place immense stress on the truck's tailgate cables. The sudden weight transfer at a steep angle creates a "shock load" that can snap aged cables or bend the tailgate itself.
By contrast, a longer ramp distributes this force over a greater duration and a shallower angle. This protects both the rider and the vehicle from structural failure during the loading process.
The Engineering Solution: The "15° Rule" and LongRamps Philosophy
At LongRamps, we believe that you cannot cheat physics, but you can certainly optimize for it. Our design philosophy centers on the 15° Gradual Ascension—the gold standard for heavy equipment loading.
By extending the horizontal run of the atv loading ramp to 9.5 feet or 11 feet, we mathematically reduce the steepness of the climb. This ensures the center of gravity remains forward of the rear axle at all times during the process, providing a stable platform.
A shallow angle also means the rider can maintain a much lower, more controlled speed. On a steep 7-foot ramp, riders often feel the need to "blip" the throttle to overcome the grade, which is exactly when loops or flips occur.
With an 11-foot ramp for 4 wheeler loading, the machine crawls upward with minimal throttle input. This control is the difference between a routine load and a dangerous accident.
Metallurgy: The Aviation-Grade 6061-T6 Advantage
We don't just use "metal" or generic "aluminum" found in big-box hardware stores. Every LongRamp is forged from aviation-grade 6061-T6 aluminum, a material selected for its extreme durability.
This specific alloy undergoes a rigorous solution heat-treatment and artificial aging process to reach its "T6" temper. The result is a material with a yield strength of 35,000 psi, providing the highest strength-to-weight ratio of any ramps atv users can find.
This ensures that even the heaviest side-by-sides or modified quads won't cause the structural bowing common in thinner, mass-produced alternatives. High-grade aluminum also offers superior corrosion resistance, ensuring the atv loading ramps don't weaken after exposure to mud, salt, or rain.
Using aviation-grade 6061-T6 aluminum allows us to keep the ramps light enough for one person to handle while maintaining a 2,500-lb capacity. This technical moat separates professional loading solutions from "weekend warrior" gear that may fail under pressure.
Length Over Curvature
Length beats arches every single time. An 11-foot ramp creates a linear path that requires significantly less engine output to navigate.
Lower throttle means more control, and more control means a safer load for the rider. When you use a ramp for atv loading that is nearly double the length of a standard retail unit, the transition becomes a seamless flow.
Arched ramps are often a "band-aid" fix for a ramp that is simply too short. By providing the necessary length, LongRamps eliminates the need for the arch, providing a straight, predictable path from the dirt to the truck bed.
Technical Specifications: Anatomy of a Premium Loading System
To understand why a ramp for 4 wheeler use from LongRamps is superior, one must look at the granular engineering details. We have eliminated the common points of failure found in "big box" store products.
3-Inch Safety Side Walls
Most ramps for quad loading are flat plates with no lateral support, leaving no room for error. LongRamps features integrated 3-inch safety side walls that act as a physical guide for your tires.
These walls prevent your tires from slipping off the edge if you lose alignment during the ascent. They provide a "track" feeling that gives the rider confidence and physical feedback through the handlebars.
Wide-Rung Traction Grids
Our rungs are spaced to provide maximum bite for aggressive mud tires while remaining smooth enough for standard factory tread. This ensures consistent friction even in rain, snow, or mud.
Reliability is key when the stakes are high and the ramp is wet. The grit and spacing of these grids are specifically designed to prevent "wheel spin" which can lead to a dangerous loss of momentum.
The Kick-Stop Lip and Structural Integrity
The attachment point is the most stressed part of any atv loading ramps. Our lips are over-engineered to distribute the weight across the entire width of the tailgate rather than concentrating it on two small points.
This wide-load distribution prevents the "point-load" pressure that can dent or warp modern aluminum truck tailgates. The design ensures the atv ramp stays planted firmly against the truck bed throughout the entire loading sequence.
Furthermore, the weld points on LongRamps are performed by certified technicians using TIG welding processes. This ensures the aviation-grade 6061-T6 aluminum maintains its strength at every junction, preventing the stress fractures common in cheap, robot-welded imports.
Step-by-Step: How to Install and Use an ATV Ramp Safely
Safe loading is a repeatable process that requires discipline and the right equipment. Follow these technical steps to ensure a professional-grade load every time you head to the trails.
Step 1: Surface Preparation and Vehicle Alignment
Ensure your pickup truck is on a flat, non-slippery surface like dry pavement or packed dirt. If you are on a slope, the effective loading angle of your atv ramp will change, potentially making it steeper and more dangerous.
Put the truck in "Park," engage the emergency brake, and turn off the engine. This ensures the vehicle won't shift forward or backward when the weight of the quad hits the tailgate.
Step 2: Ramp Placement and Spacing
Unfold your LongRamps and place the heavy-duty attachment lips firmly on the tailgate. Measure the "track width" of your 4-wheeler—the distance from the center of the left tire to the center of the right tire.
Space your ramps for 4 wheelers accordingly, ensuring they are perfectly centered with the path of the tires. Misaligned ramps are a leading cause of side-slips, so take the extra thirty seconds to measure.
Step 3: Securing the Mechanical Connection
Never load an ATV without high-quality safety straps. While these are purchased separately, they are a non-negotiable part of the safety system.
Hook one end of the strap to the designated slot on the LongRamps and the other to a secure metal point on the truck frame. Tighten the strap until the ramp is pulled snugly against the tailgate to prevent the "kick-back" effect caused by rear-wheel torque.
Step 4: The Approach and Ascent
Don your helmet and safety gear before approaching the atv loading ramp in a straight line. If your quad has it, shift into 4-Low to maximize torque at low speeds and ensure all four wheels are pulling.
Maintain a steady, moderate throttle and do not "gun" the engine at the base of the ramp. Let the 15° Gradual Ascension do the work while keeping your weight shifted forward over the handlebars to keep the front wheels planted.
Step 5: Securing the Cargo
Once the ATV is in the bed, set the parking brake immediately and shut off the engine. Use high-quality ratcheting tie-down straps to compress the suspension slightly, securing the machine to the truck's internal anchor points.
Remove the ramps for atv use, fold them, and secure them in the bed alongside the quad. Check all connections one last time before beginning your drive to ensure nothing can shift during transport.
Comparing the Market: LongRamps vs. Standard Retail Ramps
Not all loading ramps are created equal, and the differences are often found in the specs. Below is a breakdown of why investing in professional-grade equipment is a necessity for the serious rider.
| Feature | LongRamps (9.5' - 11') | Standard Retail 7ft Ramps |
| Material Construction | Aviation-grade 6061-T6 Aluminum | Low-grade recycled aluminum or steel |
| Loading Angle | Optimal 15° Gradual Ascension | Steep 25° - 30° Incline |
| Side Wall Protection | Integrated 3-inch Raised Rails | None (Flat surface) |
| Weight Capacity | Up to 2,500 lbs (Model dependent) | Usually 1,000 - 1,200 lbs |
| Ride Stability | Maximum (Length minimizes CG shift) | Low (High risk of rear-flip) |
| Tailgate Compatibility | Wide-load distribution lips | Narrow points (high dent risk) |
| Origin of Manufacture | Made in the USA | Frequently imported mass-production |
Conclusion
The difference between a successful day on the trails and a trip to the emergency room often comes down to a few feet of aluminum. By choosing the 15° Gradual Ascension provided by LongRamps' 6061-T6 aviation-grade systems, you aren't just buying a tool—you are investing in a definitive safety standard that respects the physics of the ride. Your safety is worth the extra length.
FAQ: Expert Insights for ATV Owners
1. How do I install an ATV ramp safely at home?
To install an atv ramp safely at home, start by ensuring your truck is on level ground with the parking brake engaged. Place the ramp lips securely on the tailgate, spacing them to match your ATV's wheel width. You must then use high-tension safety straps (available as a separate purchase) to anchor the ramps to the truck's hitch or frame. This tension-based connection is the only way to prevent the ramps from slipping backward as the ATV's rear wheels apply torque during the climb.
2. How long should my ATV ramps be for a standard pickup truck?
For a standard pickup truck, you should look for an atv loading ramp that is at least 9.5 feet to 11 feet long. While 7-foot ramps are common in retail stores, they create a dangerously steep incline that increases the risk of flipping. A longer ramp, like the ones offered by LongRamps, ensures a 15° Gradual Ascension, which keeps the vehicle stable and reduces the strain on your engine and transmission. If you have a lifted truck or a 4x4 with high ground clearance, the 11-foot model is mandatory.
3. What is the safest loading angle for an ATV?
The safest loading angle for an ATV is 15 degrees. This specific angle is low enough to prevent the center of gravity from shifting too far to the rear, which is the primary cause of backward flips. Standard short ramps often force an angle of 25 to 30 degrees, which is significantly more hazardous. By using longer ramps for 4 wheelers, you maintain a "low-rise" approach that allows for slow, controlled throttle management rather than needing to carry dangerous momentum to clear the tailgate.
4. Is 6061-T6 aluminum better than other loading ramps on the market?
Yes, 6061-T6 aviation-grade aluminum is vastly superior to the generic alloys used in most ramps for quad loading. The "T6" designation means the metal has been heat-treated and aged to provide maximum structural integrity and hardness. It offers a much higher yield strength, meaning it can support heavier loads without permanent deformation. This ensures your loading ramps remain straight and reliable over years of heavy use, unlike cheaper, thinner alternatives that may bow or crack under the weight of a modern, heavy-duty 4-wheeler.
5. How do I prevent my ATV from flipping backward while using a ramp?
To prevent your ATV from flipping backward, you must address two factors: ramp length and rider positioning. First, use an elongated atv ramp (9.5' or 11') to create a 15° Gradual Ascension, which keeps the weight distributed toward the front. Second, as you ascend, lean your body weight forward over the handlebars. This manual shift in mass compensates for the incline. Finally, always use a low gear and steady throttle to avoid sudden torque spikes that can "pop" the front wheels off the ramp surface.
