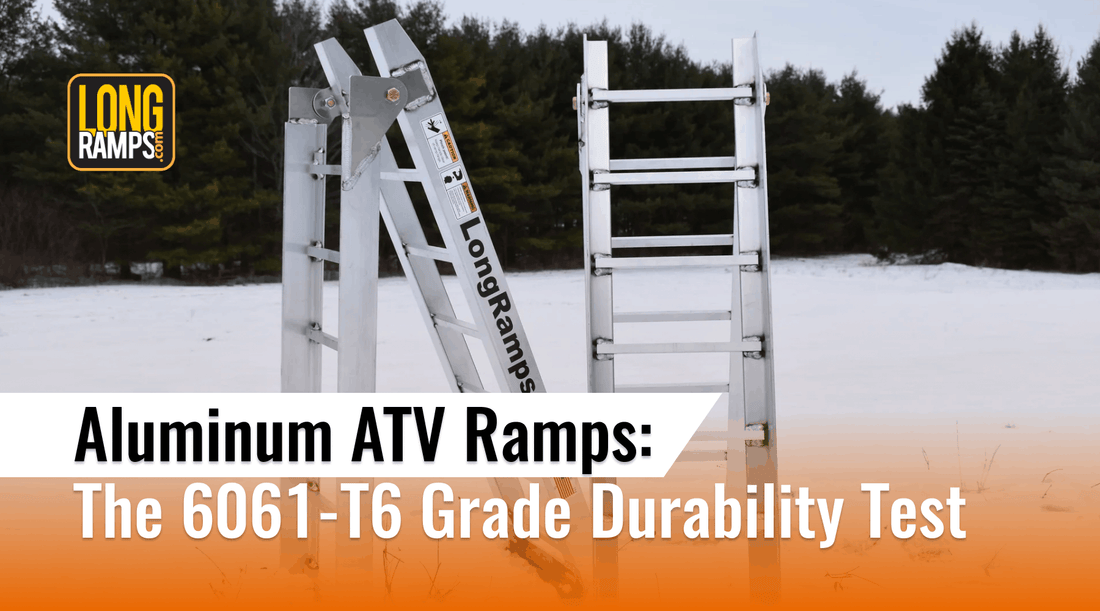

Aluminum ATV Ramps: The 6061-T6 Grade Durability Test
Share
Yes, 6061-T6 aluminum is significantly better than standard alloys because it offers nearly double the yield strength of architectural alloys like 6063. While standard aluminum atv ramps may use cheaper alloys that flex or "smile" under heavy loads, 6061-T6 aviation-grade aluminum undergoes a rigorous heat-treatment process to reach a T6 temper. This ensures your aluminum atv ramp maintains structural integrity, providing a superior safety factor for pickup trucks and heavy quads that require high tensile strength and corrosion resistance.
The Problem Space: Why Generic Ramps Fail
Most aluminum ramps for atv use on the market are built with 6063 aluminum, often referred to as "architectural grade." While this alloy is excellent for window frames or railings because it is easy to extrude, it lacks the yield strength required for high-impact loading. When a 900-lb quad climbs a steep incline, the force concentrated on the rungs and side rails can quickly exceed the material's elastic limit.
This leads to "permanent deformation," where the ramp stays slightly bent after the weight is removed. Furthermore, generic atv loading ramps often utilize thin-wall tubing to save on costs, which compromises the heavy duty rating needed for modern, larger machines. In a high-stress scenario, a low-grade alloy ramp can suffer from "sudden catastrophic failure" rather than gradual flexing.
The truck bed environment is also harsh, exposing equipment to salt, mud, and moisture. Without high-grade corrosion resistance, cheaper alloys can develop stress-corrosion cracking at the weld points. This is why many atv ramps folding designs feel loose or "shaky" after only one season of use—the material itself is simply not up to the task.
The LongRamps Solution: The Metallurgy of 6061-T6
At LongRamps, we exclusively use 6061-T6 aviation-grade aluminum to ensure our aluminum atv ramps set the industry standard for durability. The "6061" indicates a magnesium and silicon-alloyed aluminum that is specifically engineered for structural applications. The "T6" refers to the tempering process, where the metal is solution heat-treated and artificially aged to lock in its maximum strength.
The physics of loading safety can be expressed by the formula: Safety Factor = Yield Strength / Working Load. By using 6061-T6, we essentially double the numerator in that equation compared to standard retail ramps. This results in heavy duty folding aluminum ramps that can withstand thousands of loading cycles without a shift in their structural profile.
Beyond strength, 6061-T6 provides the ultimate strength-to-weight ratio. This allows us to build aluminum folding ramps that are light enough for a single person to carry but strong enough to support the weight of a fully loaded UTV. By focusing on heat-treated aluminum, we eliminate the "bouncing" effect common in softer, non-tempered aluminum loading ramps.
Step-by-Step Practical Guide: Inspecting Your Ramps
Even with the best materials, periodic inspections are vital for long-term safety. Understanding how to check your aluminum foldable ramps ensures they remain trail-ready for years.
1. Identify the Yield Point
The yield point is the stage where metal ceases to be elastic and becomes permanently deformed. Visually inspect the side rails of your folding aluminum atv ramps by sighting down the length of the rail. If there is a visible "bow" or "dip" that does not go away when the machine is removed, the alloy has reached its yield point and the ramp's structural integrity is compromised.
2. Monitor Weld Integrity
Check the areas where the rungs meet the side rails for "spider-web" cracks or discoloration. High-quality heavy duty ramps use TIG welding, which should appear as clean, uniform "beads." If you see any separation or fine cracks, it is a sign of tensile strength failure, likely caused by using a non-heat-treated alloy for a load that was too heavy.
3. Test the Folding Mechanism
For atv ramps folding styles, the hinge is the most common point of failure. Ensure the pins are not bent and that the holes have not become "ovaled" out. This elongation of the pinholes is a clear indicator of soft, low-grade metal that cannot handle the aluminum loading forces required for modern pickup trucks.
Buyer’s Comparison: Material Longevity
When shopping for aluminum pickup ramps, the "cheaper" option usually costs more in the long run. Steel ramps, while strong, are prone to rust and are often too heavy for frequent use. Architectural aluminum (6063) is lightweight but lacks the lifespan of a true structural alloy.
| Material Property | 6061-T6 Aluminum (Aviation) | 6063 Aluminum (Architectural) |
|---|---|---|
| Yield Strength (psi) | 40,000 | 21,000 |
| Tensile Strength (psi) | 45,000 | 27,000 |
| Corrosion Resistance | High | High |
| Application | Heavy Equipment/Aircraft | Window Frames/Trim |
| Safety Factor | Maximum Structural Integrity | Prone to Permanent Deformation |
Conclusion
Choosing the right material for your aluminum ATV ramps is a decision that impacts both the safety of your machine and your personal well-being. By insisting on 6061-T6 aviation-grade aluminum, you are choosing a metal with a proven track record in high-stress structural environments. It provides the tensile strength and yield strength necessary to maintain a 15° Gradual Ascension without the risk of permanent deformation or failure.
Standard alloys simply cannot compete with the durability of heat-treated aluminum. Whether you are fitting two quads in a bed or navigating the tricky break-over angle of a golf cart, the material grade is your first line of defense. Invest in the engineering of LongRamps to ensure your loading process is as reliable as the machine you ride.
FAQ: Material Science & Durability Mastery
1. Is 6061-T6 aluminum better than other alloys for ATV ramps?
Yes, 6061-T6 aluminum is vastly superior for ATV ramps because it is a structural alloy with nearly twice the yield strength of common 6000-series alternatives. While other alloys might look the same, they lack the specific magnesium and silicon balance that allows for high tensile strength. This means a 6061-T6 ramp can support much heavier quads and UTVs without bending, sagging, or suffering from the metal fatigue that plagues cheaper, mass-produced ramps.
2. What is the difference between 6063 and 6061-T6 aluminum alloys?
The primary difference lies in their mechanical properties and intended use. 6063 is an "architectural" alloy designed for aesthetic finishes and moderate strength, whereas 6061-T6 is an "aviation-grade" structural alloy. Specifically, 6061-T6 has a yield strength of 40,000 psi, while 6063 typically peaks around 21,000 psi. For atv loading ramps, this difference is critical, as 6061-T6 provides the stiffness needed to prevent the ramp from "springing" or buckling under a 1,000-lb load.
3. Are aluminum ATV ramps more durable than steel ramps?
In a powersports context, aluminum atv ramps are often more durable because they possess superior corrosion resistance. While steel is naturally strong, it is incredibly heavy and begins to oxidize (rust) the moment the paint or powder coating is scratched. Once rust sets in, the structural integrity of the steel is compromised. 6061-T6 aviation-grade aluminum forms its own protective oxide layer, ensuring that your ramps stay strong and rust-free even after years of exposure to mud and road salt.
4. Why does "heat-treated" aluminum matter for loading ramps?
"Heat-treated" refers to the T6 tempering process, which is the secret behind the metal's strength. Aluminum in its "O" (annealed) state is quite soft. By solution heat-treating and then artificially aging the metal (the T6 process), engineers can align the molecular structure to resist deformation. For aluminum folding ramps, this treatment ensures that the rungs and rails don't "soften" or warp over time, maintaining the same safety factor on the 500th load as they did on the first.
5. Where can I buy heavy-duty aluminum folding ramps made of 6061-T6?
You can find premium heavy duty folding aluminum ramps made specifically from 6061-T6 at LongRamps. We specialize in over-engineered loading solutions that prioritize material science over cost-cutting. By purchasing directly from a manufacturer that specifies its alloy grades, you avoid the "mystery metal" often found in big-box stores. Our ramps are designed to handle the toughest aluminum loading tasks for pickup trucks, providing peace of mind through superior metallurgy.
